Temporary gully grate

MultiGrate™ 250kN

Stolen gully grates are a severe problem for authorities responsible for roads and highways. Multigrate provides a high-quality, safe, easy-to-install, temporary fix to keep roads open until a permanent solution can be installed.

Multigrate temporary gully grate
MultiGrate temporary gully grate

Responding to gully grate theft often means several visits for maintenance crews to complete the installation of a replacement cover, leading to increased traffic disruption and extra costs.

Multigrate is designed to be fitted efficiently by a maintenance crew on the first visit. Its robust design forms a secure temporary grate until a permanent replacement is installed. The grate is easily cut on-site to fit the exact size of the gully using standard tools and the built-in cutting guidelines ensure an accurate fit with most inspected gratings.

Multigrate is lightweight, can be stored as part of a maintenance crew’s standard equipment, is non-toxic and importantly has no scrap value.

Our latest enhanced MultiGrate offers greater strength and improved versatility, providing a safe and secure solution for Group 3 applications, suitable for kerbside locations across the UK’s highways, main roads, and public road networks.

PRODUCTS

Stock code Range Clear opening
(mm)
Base opening
(mm)
Overall frame
(mm)
Frame depth
(mm)
Waterway area
(cm²)
My Wrekin Downloads
PG/MULTIGRATE/250KN 510 x 450 80 721
Multigrate installed in a car park

Multigrate benefits

Loadings up to 250kN

Multigrate can withstand weights up to 250kN, making it suitable for Group 3 locations.

One grate fits 90% of all gratings

Single item provides maximum compatibility, reducing repeat visits to depots and site.

No scrap value

The temporary grating has no scrap value but is completely reusable.

Rapid installation

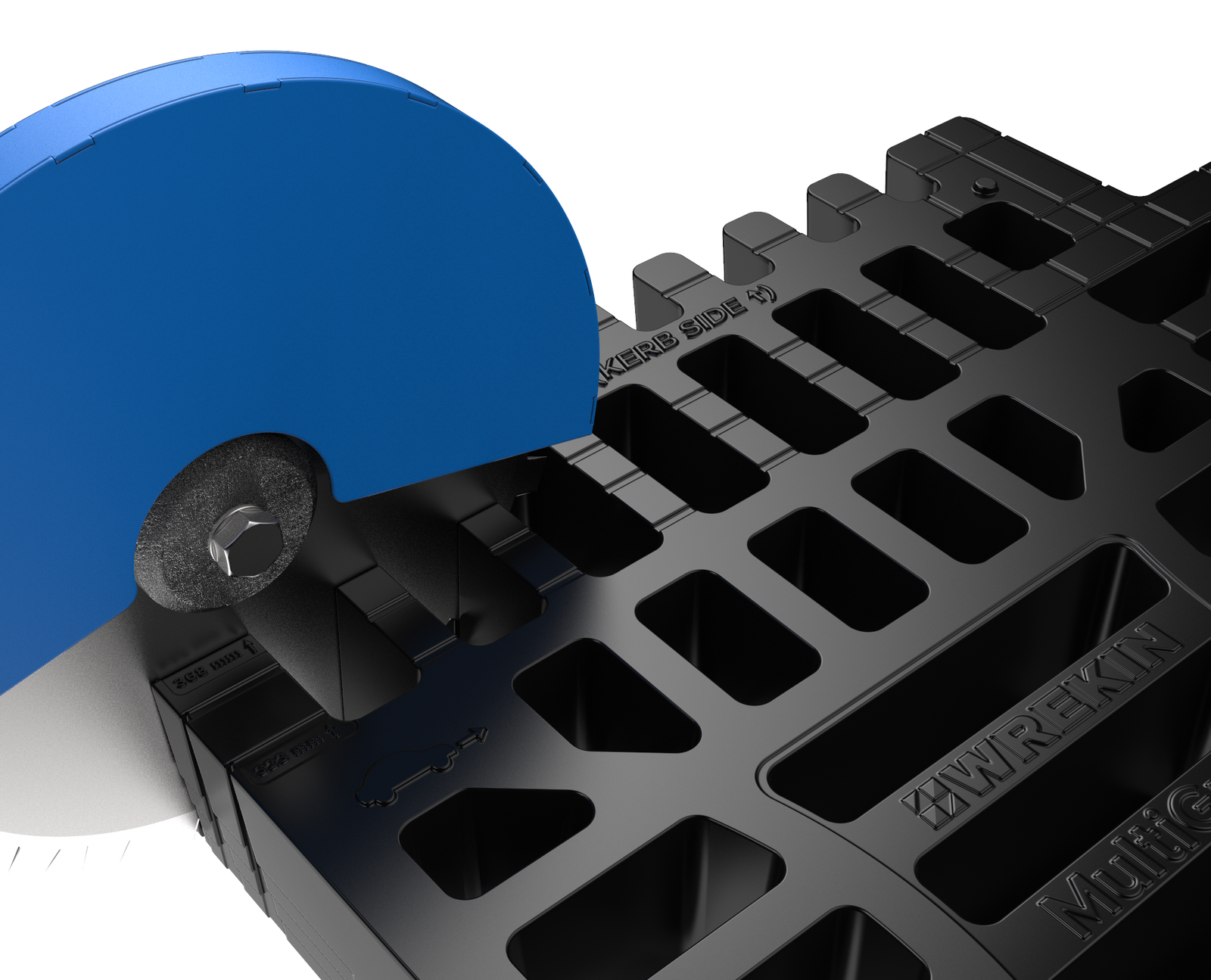

Use the cutting guides to cut to shape with readily available construction tools.

Single item for multiple sizes

Reduced stock holding, allowing Multigrate to always be on hand.

Large waterway area

No loss of performance ensuring safety remains as standard.

No hazardous fumes

Manufactured from non-toxic materials, providing safety to installers.

Lightweight

Easy to handle and install.

Gallery

Multigrate in numbers

compatability

90%

scrap value

£0

lightweight solution

13kg

Related case studies

Related case study

Essex highways: A solution to gully grate theft

The need to rapidly replace dozens of gully grates which were stolen in the Uttlesford area of Essex over a three-day period was met by Wrekin Products’ MultiGrate, a composite grating which can be sized on site to replace almost any missing gully ironwork and provide an instant temporary fix.
