DMT0D6/1212/4

Hercules D400 manhole cover 1200mm x 1200mm clear opening with 150mm frame depth

Specification Knowledge base

Stock code	Range	Clear opening (mm)	Overall frame (mm)	Frame depth (mm)	Options	My Wrekin
DMT0D6/1212/4	Hercules	1,200 x 1,200	1,385 x 1,385	150	Options Ventilation holes Factory-applied badging Seal plate Safety grille Screw locking	Quantity	Download

Anti-flex covers prevent the causes of cover seating wear, eliminating excessive noise and catastrophic failure.
Anti-flex covers prevent the causes of cover seating wear, eliminating excessive noise and catastrophic failure.
Specially designed cover support geometry reduces movement relative to the frame, minimising seating wear.
Specially designed cover support geometry reduces movement relative to the frame, minimising seating wear.
The enlarged frame corners help to dissipate loads onto the foundation, providing a longer service life and increased reliability.
The enlarged frame corners help to dissipate loads onto the foundation, providing a longer service life and increased reliability.
Indexed covers ensure correct fit first time, every time.
Indexed covers ensure correct fit first time, every time.
Inspection window allows safe and easy view into chamber.
Inspection window allows safe and easy view into chamber.
Mechanical lifting points are provided.
Mechanical lifting points are provided.
Safety keyway prevents accidental disengagement of the lifting key during the handling process.
Safety keyway prevents accidental disengagement of the lifting key during the handling process.
70+PSRV tested at top surface of chequer by UKAS accredited 3rd party.
70+PSRV tested at top surface of chequer by UKAS accredited 3rd party.

Images

Specification

General information

Stock code	DMT0D6/1212/4
Primary material	Ductile iron
Range	Hercules
Category	Manhole cover
Flanges	4

Standards, classes and groupings

Standards	BS EN 124-2
BS EN 124 Class	D400
BS EN 124 Group	4

Dimensions

Frame shape	Square
Manhole shape	Square
Overall frame (A x B)	1,385 mm x 1,385 mm
Clear opening (C x D)	1,200 mm x 1,200 mm
Frame depth (E)	150mm
Base opening (F x G)	1,230 mm x 1,230 mm

Available options

Ventilation holes

Provide additional cover ventilation in addition to the product’s natural ventilation, up to the BS EN 124 allowance.
Ventilation holes

Provide additional cover ventilation in addition to the product’s natural ventilation, up to the BS EN 124 allowance.
Badging with communications options

Bespoke badging with communications options, including NFC, RFID and IoT technology.
Badging with communications options

Bespoke badging with communications options, including NFC, RFID and IoT technology.

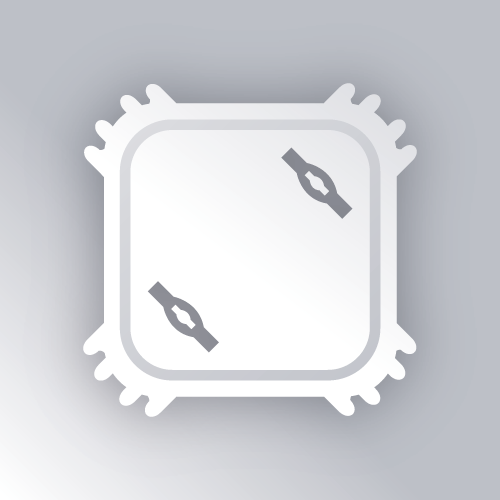

Low leak seal plate

Restricts the flow of surface water runoff into the chamber. Reducing the possibility of overwhelming the drainage system.
Low leak seal plate

Restricts the flow of surface water runoff into the chamber. Reducing the possibility of overwhelming the drainage system.
Safety grille

Safety grilles prevent accidental chamber falls. Available in a variety of configurations; including bars and mesh as drop-in or hinged.
Safety grille

Safety grilles prevent accidental chamber falls. Available in a variety of configurations; including bars and mesh as drop-in or hinged.
Screw locking

Screw locking deters unauthorised access to the chamber. An extended shank socket set is required to engage the locking screw.
Screw locking

Screw locking deters unauthorised access to the chamber. An extended shank socket set is required to engage the locking screw.

Accessories

Stock code	Description	My Wrekin
	Expand to see the full range of Uniform Hide the full range of Uniform
PC/UNIFORM/151076	Uniform chamber adjustment unit 760mm x 100mm x 15mm	Quantity	Download
PC/UNIFORM/251076	Uniform chamber adjustment unit 760mm x 100mm x 25mm	Quantity	Download
PC/UNIWEDGE/755012	Uniform support wedge 120mm x 50mm x 75mm	Quantity	Download
	Expand to see the full range of UniPak Mortar Hide the full range of UniPak Mortar
YPCR/U12.5	12.5Kg Unipak rapid curing polyester resin mortar	Quantity	Download
YPCR/U25	25Kg Unipak rapid curing polyester resin mortar	Quantity	Download
SCREWLIFT	Manhole cover levelling system	Quantity	Download
GRITBLOCKER	Anti-blockage keyway insert	Quantity	Download
	Expand to see the full range of Lifting Key Hide the full range of Lifting Key
KEY/LONG	Large cover lifting keys with a long handle (sold as a pair)	Quantity	Download
KEYS/L	Small cover combined lifting key	Quantity	Download
KEYSHEAVY	Large cover lifting keys with a standard handle (sold as a pair)	Quantity	Download

Downloads

BIM model - DMT0D6-1212-4 - 63.ifc

BIM File-Login required

Wrekin Products - Ductile Iron Range Catalogue 2023.pdf

Catalogue-pdf

Wrekin Manhole Cover Installation Guide.pdf

Instruction manual-pdf

Wrekin PSRV Certificate of Conformance.pdf

Certificate-pdf

Kitemark Certificate.pdf

Certificate-pdf

Notes

BS EN 124 and CD 534 apply to products with a clear opening up to 1 metre. The Hercules range of access covers have a clear opening greater than this, however load capability and design features exceed the requirements of these documents. Please note that Hercules 1,200 x 1,200mm cover is the only cover in the range to have keyholes for manual lifting. All values stated are nominal within 2.5% tolerance.
