Geocellular permanent panelled system

CellTrack™

CellTrack is a permanent panelled system that is virtually invisible from the surface once in-filled. Available in a variety of panel sizes and with a heavy duty variant, it is designed for quick and easy installation. Panels simply interlock and incorporate small ground spikes, providing anchorage during installation.

CellTrack

CellTrack can be used with a variety of fill materials, allowing developers to rapidly build new access areas such as roads and car parks, which are both pleasing to the eye and consistent with the existing environment.

CellTrack is available in 2 variants:

  • CellTrack
  • CellTrack Heavy Duty (suitable for HGV vehicles and light construction)

Manufactured from 100% recycled plastics, CellTrack embodies the principles of a circular economy, taking plastics by repurposing post-consumer and post-industrial plastic waste. It is virtually invisible from the surface once infilled, and  can be infilled with soil to promote grass growth or gravel to create decorative driveways and paths. The honeycomb structure helps to retain gravel on driveways and will protect and promote the growth of grass when infilled with soil in turfed areas.

In all applications CellTrack provides excellent support for vehicular traffic.

Specification at a glance

  CellTrack CellTrack Heavy Duty
Panel size 500 x 500mm
1,200 x 800mm
600 x 400mm
Panel depth 38mm
50mm
50mm
100mm
Breaking strain (unfilled) +/- 135 t/m2(38mm)
+/- 105 t/m2(50mm)
+/- 200 t/m2
Material 100% recycled HDPE 50% recycled PE/PP
50% sink fraction

CellTrack

CellTrack small panel

CellTrack is a hexagonal permanent panelling system ideally suited to the creation of paths for pedestrian and light vehicular traffic (see CellTrack HD for HGV traffic). CellTrack is available in 2 panel sizes and 2 panel depths allowing you to tailor the solution to your requirements and infill material.

Stock code Description My Wrekin
GSCELLTRACK/LP38BB Celltrack 38 1,200mm x 800mm x 38mm black large panel
GSCELLTRACK/LP50BB Celltrack 50 1,200mm x 800mm x 50mm black large panel

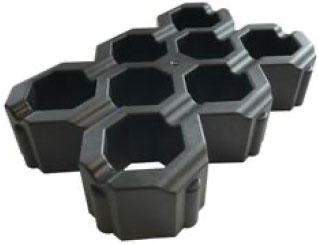

CellTrack Heavy Duty (HD)

CellTrack HD

CellTrack HD is a permanent panelled system manufactured from recycled plastics. It offers all of the design and installation benefits of CellTrack and CellTrack LP but in a heavy duty panel, that is design to withstand high loading capacities, high intensity traffic situations, fire tender access and dust cart traffic.

Available in 50mm and 100mm depths, it can be used with a variety of fill materials including grass and gravel. Allowing developers to build new access areas such as coach and truck parking areas, which are both pleasing to the eye, porous and consistent with the existing environment.

Stock code Description My Wrekin
GSCELLTRACK/HD50 CellTrack HD 50 (Heavy Duty) 600mm x 400mm x 50mm anthracite grey panel
GSCELLTRACK/HD100 CellTrack HD 100 (Heavy Duty) 600mm x 400mm x 100mm anthracite grey panel
Geoworks pattern
Introducing the new name in geosynthetics

Geoworks - Geosynthetics by Wrekin

Geoworks is our new name for Wrekin Geosynthetics. Geoworks encompasses our entire geosynthetics range, including geotextiles, geogrids, geomembranes, geomats, geocells, and geocellular paving.

In fact, Geoworks' full product catalogue is far more comprehensive than many others on the market, making Geoworks a true one-stop shop. With Geoworks, you can expect the same high-quality service you are familiar with through Wrekin.

Celltrack with grass

Recycled content

Celltrack is made entirely from 100% recycled materials, embodying the principles of a circular economy. By repurposing post-consumer and post-industrial plastic waste, Celltrack contributes to sustainable industry practices, aligning with the United Nations' Goal 12 for sustainable consumption.

Our commitment to the environment not only delivers exceptional performance but also supports the global initiative to combat climate change.

Functions

Protection

Stress reduction layer to prevent or reduce damage

Reinforcement

Resists stresses or reduces deformations
