Cost-effective reinforcement

SX Grid

SX Grid is a biaxial geogrid that provides a cost-effective solution to solve pavement problems by providing omni-axial reinforcement to granular sub-bases, capping layers and railway ballasts in areas of weak or variable soils.

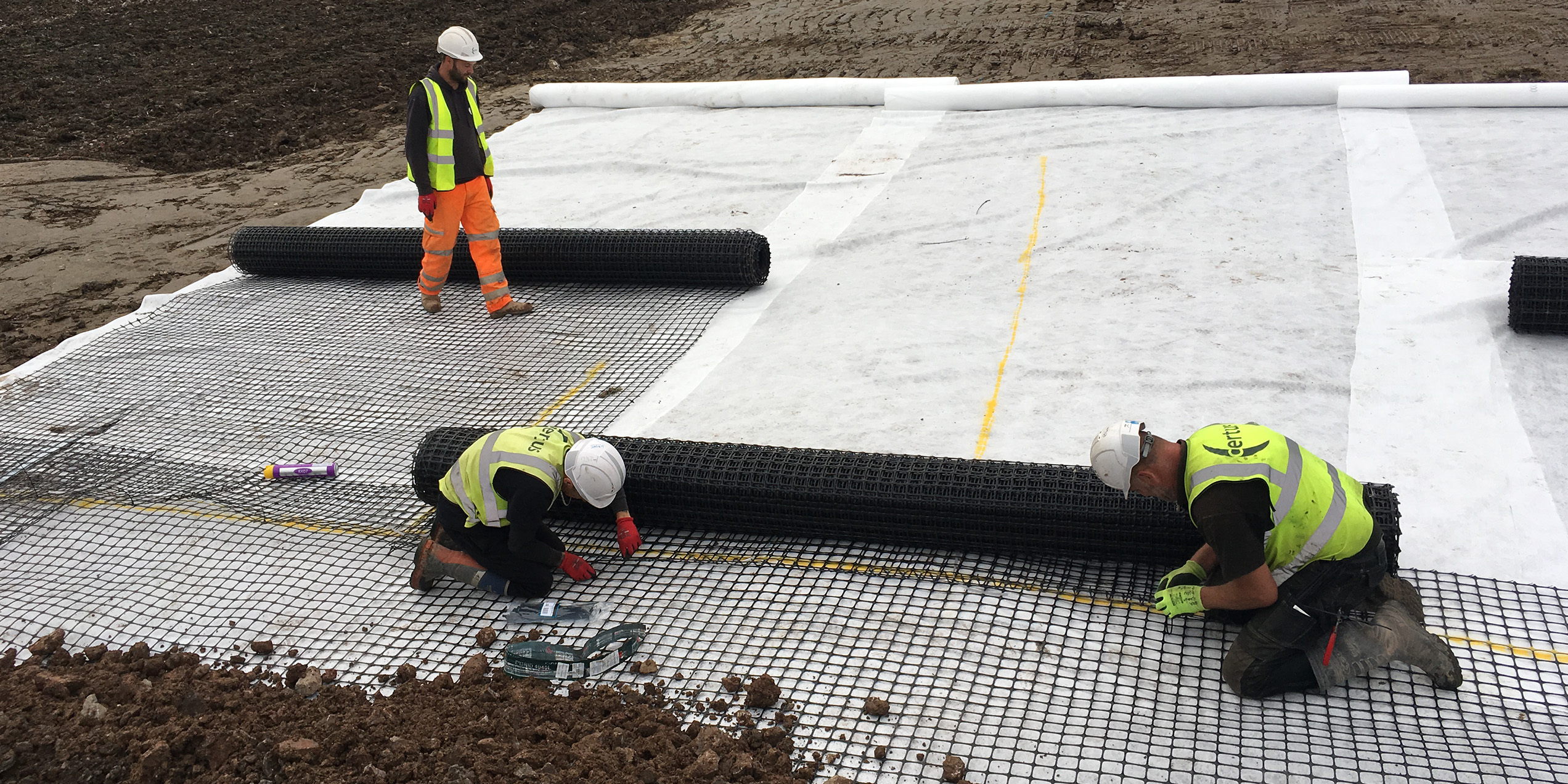

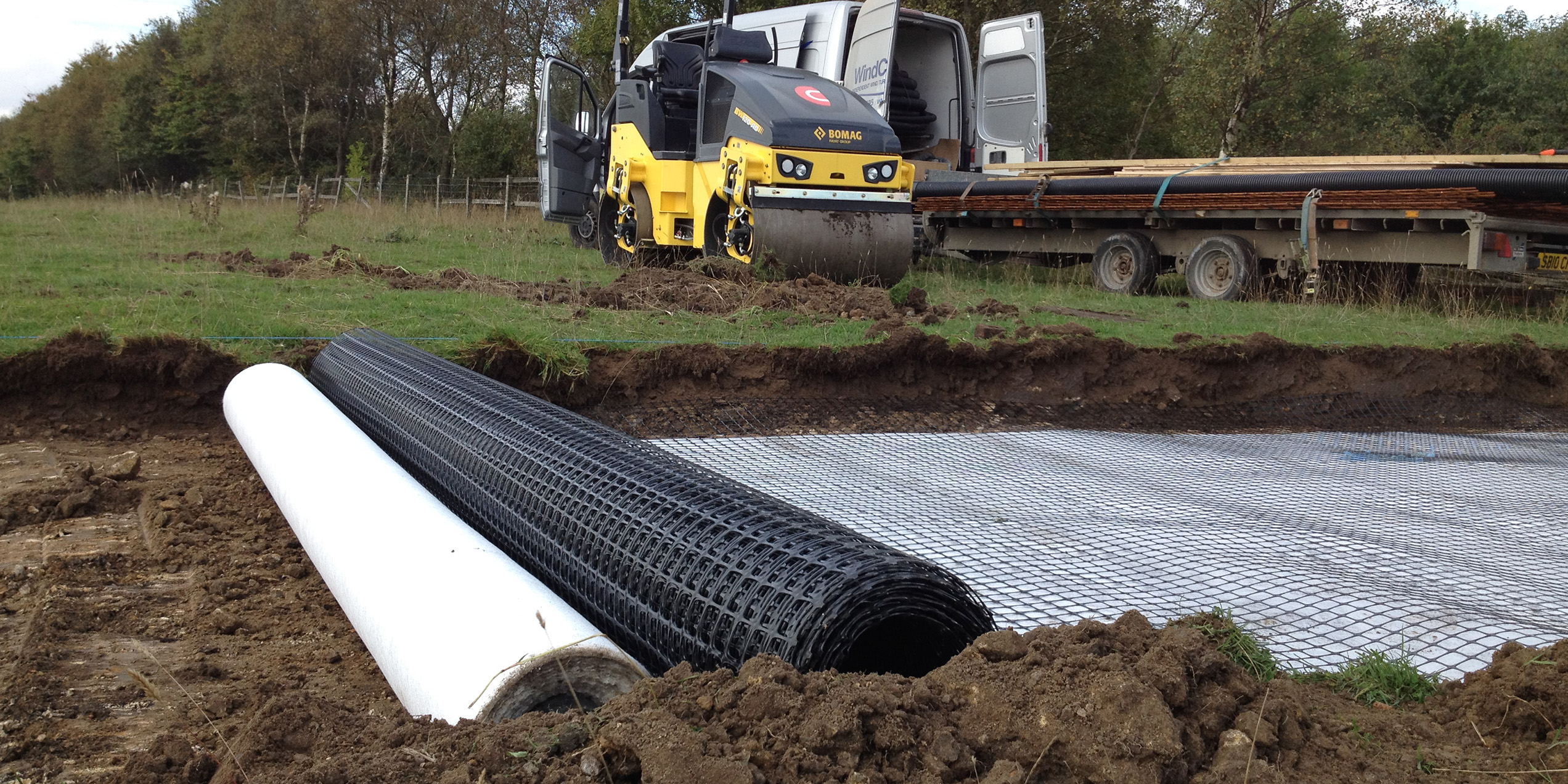

SX Grid biaxial geogrid installation

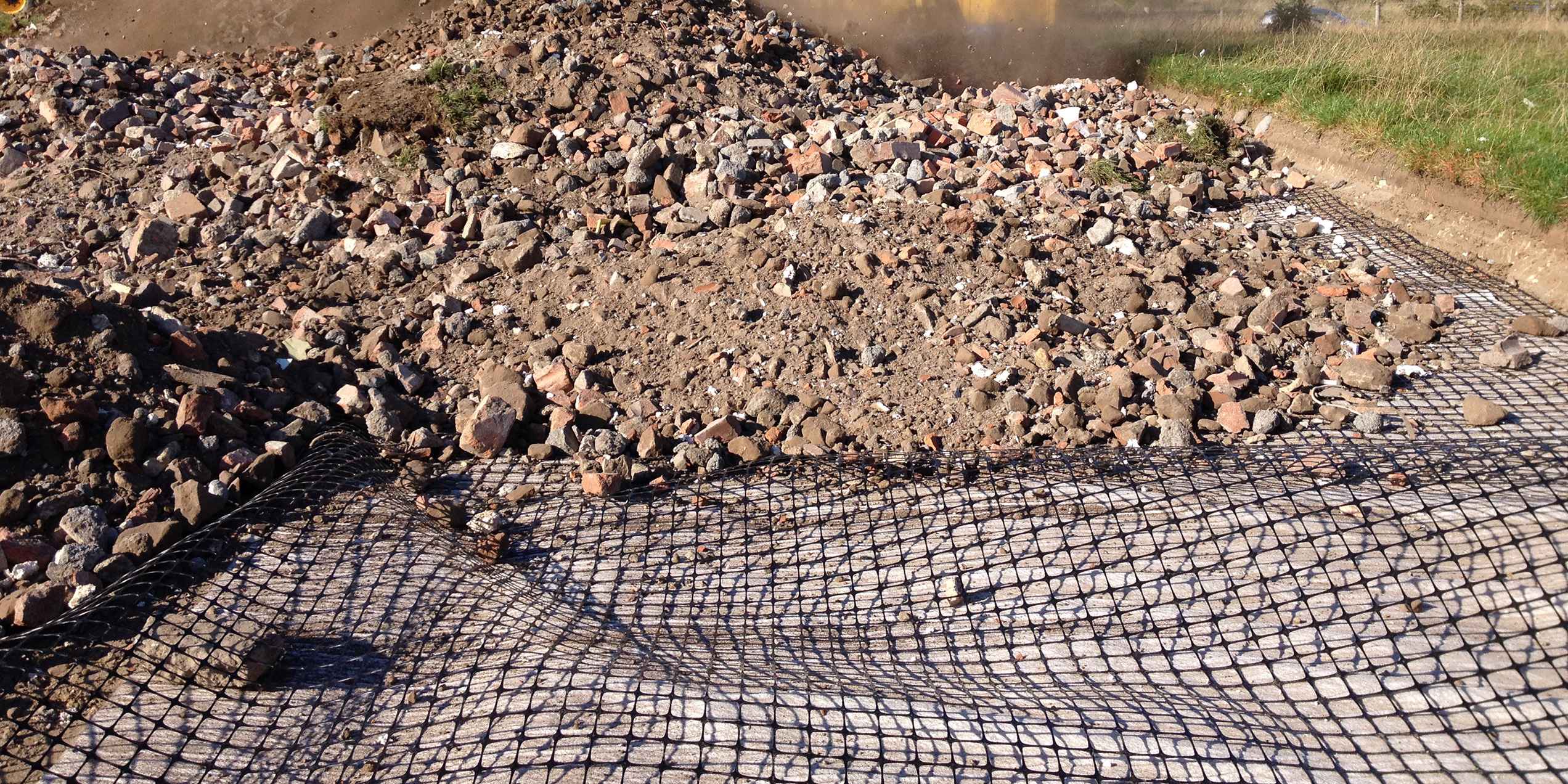

SX Grid allows granular particles to be compacted over them, partially penetrating and projecting through the apertures. This creates a strong and positive interlock, this interlocking mechanism increases shearing resistance within the soil, improving compaction and allowing the sub-base thickness to be decreased while allowing loads to be dispersed. With SX Grid you can reduce construction time, costs and even CO2e.

Benefits of SX Grid

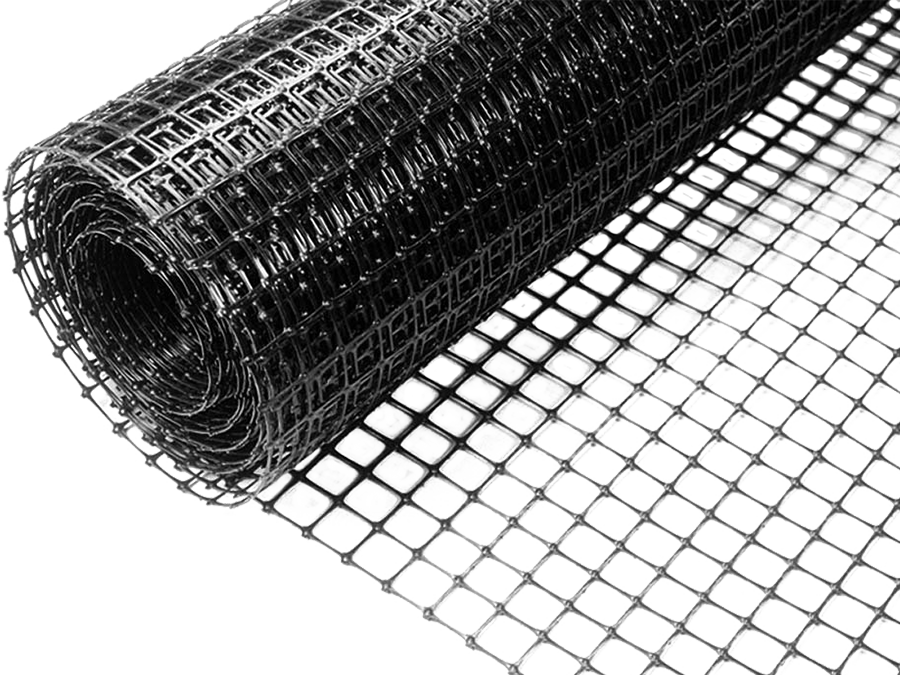

SX Grid roll

Stock code Description My Wrekin
GGSXGRID/20 Biaxial Geogrid Polypropylene - 4m x 50m roll
GGSXGRID/30 Biaxial Geogrid Polypropylene - 4m x 50m roll (other roll sizes available)
GGSXGRID/40 Biaxial Geogrid Polypropylene - 4m x 30m roll

SX Grid Statistics

reduction available on the thickness of a compound or haul road.


cost savings available when using SX Grid.


Applications for SX Grid

SX Grid is a versatile biaxial geogrid, providing strong reinforcement to weak sub-bases across a wide variety of applications.

Compounds and haul roads

Achieve an economical design with rapid delivery and reduced costs on your compound or haul road.

Compounds and haul roads

Piling platforms

Safety is critical, quickly increase the bearing capacity and reduce platform thickness with SX Grid.

Piling platforms

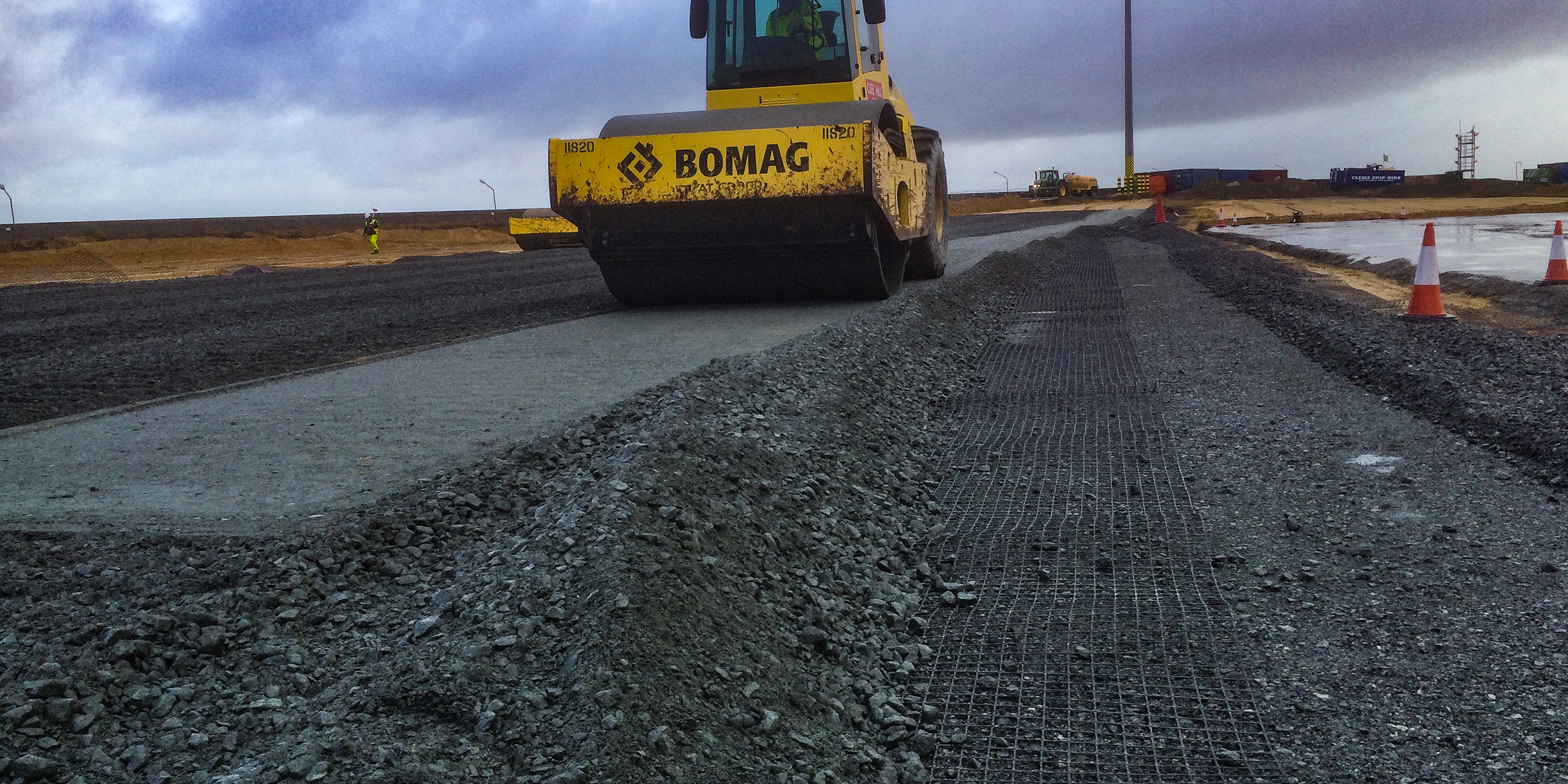

Paved roads

Whether a rigid or flexible pavement, SX Grid can provide increased strength and stiffness to a roads foundation.


Minimise track settlement and degradation, by providing granular confinement for increased longevity with reduced costs.

Car parks

Whether paved or unpaved, the interlocking mechanism provided by SX Grid will increase performance with lower upfront and whole-life costs.

E'GRID reduces thicknesses of compounds and haul roads
Achieve significant savings

Reduce your projects carbon emissions

Wrekin geogrids can play a significant role in reducing carbon emissions across a project. There's numerous ways this is achieved, including:

  • By reducing the amount of earthworks required on-site before the grids go into the ground. This reduces the amount of plant required, and their associated emissions.
  • Reducing the thickness of a haul road, compound or similar. This thickness is created with aggregate which requires extraction, processing, and transport. By minimising the aggregate you will significantly reduce embodied carbon. Wrekin geogrids can provide equivalent load bearing capabilities to sub-bases twice as thick, providing aggregate savings of up to 50%.
  • Minimising the likelihood of repairs. Geogrids provide reinforcement, leading to higher quality, stronger sub-bases, which can result in longer lasting and harder wearing installations, requiring less repairs and maintenance.
Calculate your aggregate savings when using a Wrekin biaxial geogrid

Find out how much money and carbon you can save

When constructing a temporary road you can save money and decrease your carbon footprint by using a Wrekin biaxial geogrid to dramatically reduce the amount of aggregate required on your project.

Our easy to use calculator can give you an estimation of cost and carbons savings.

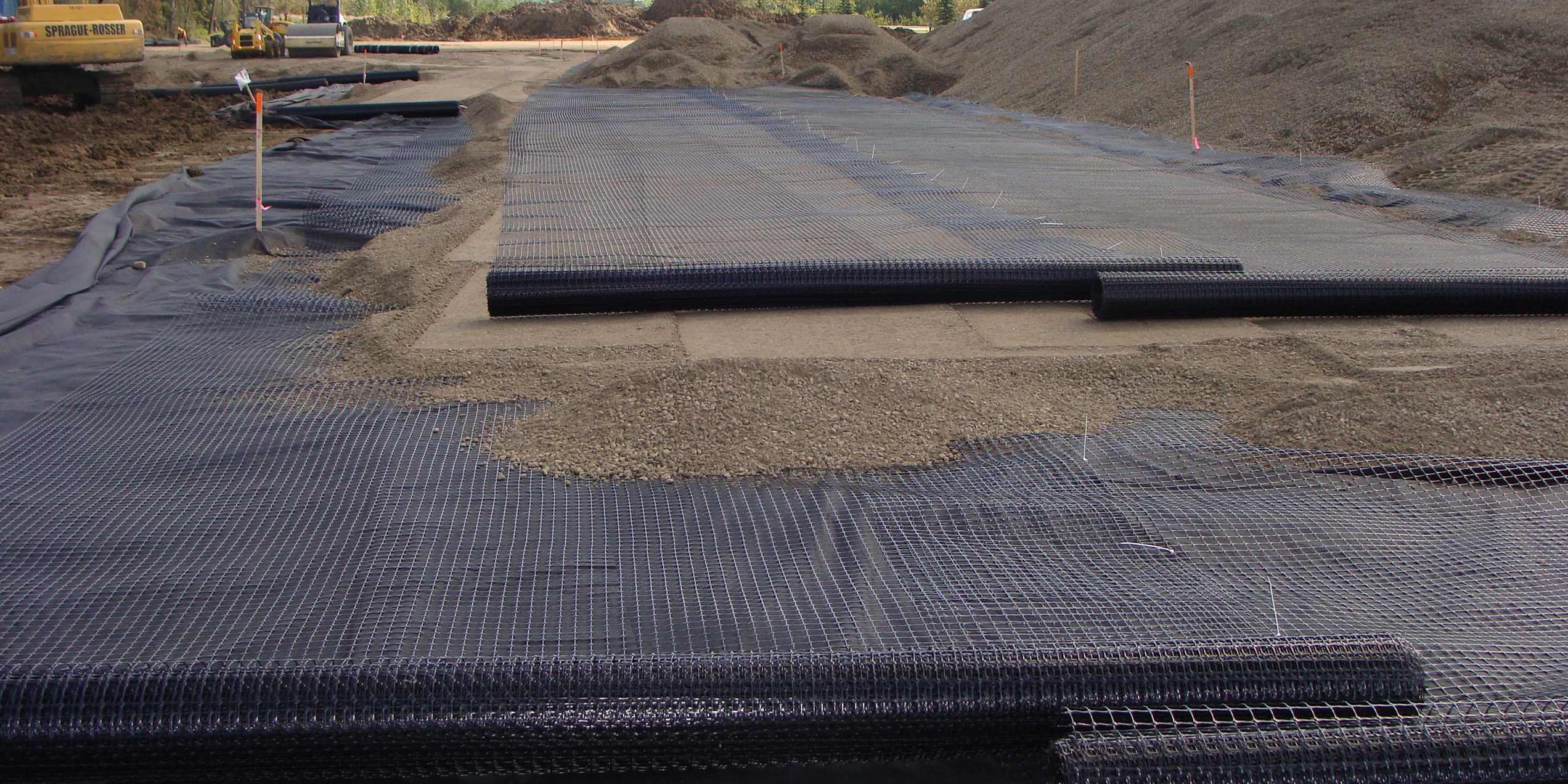

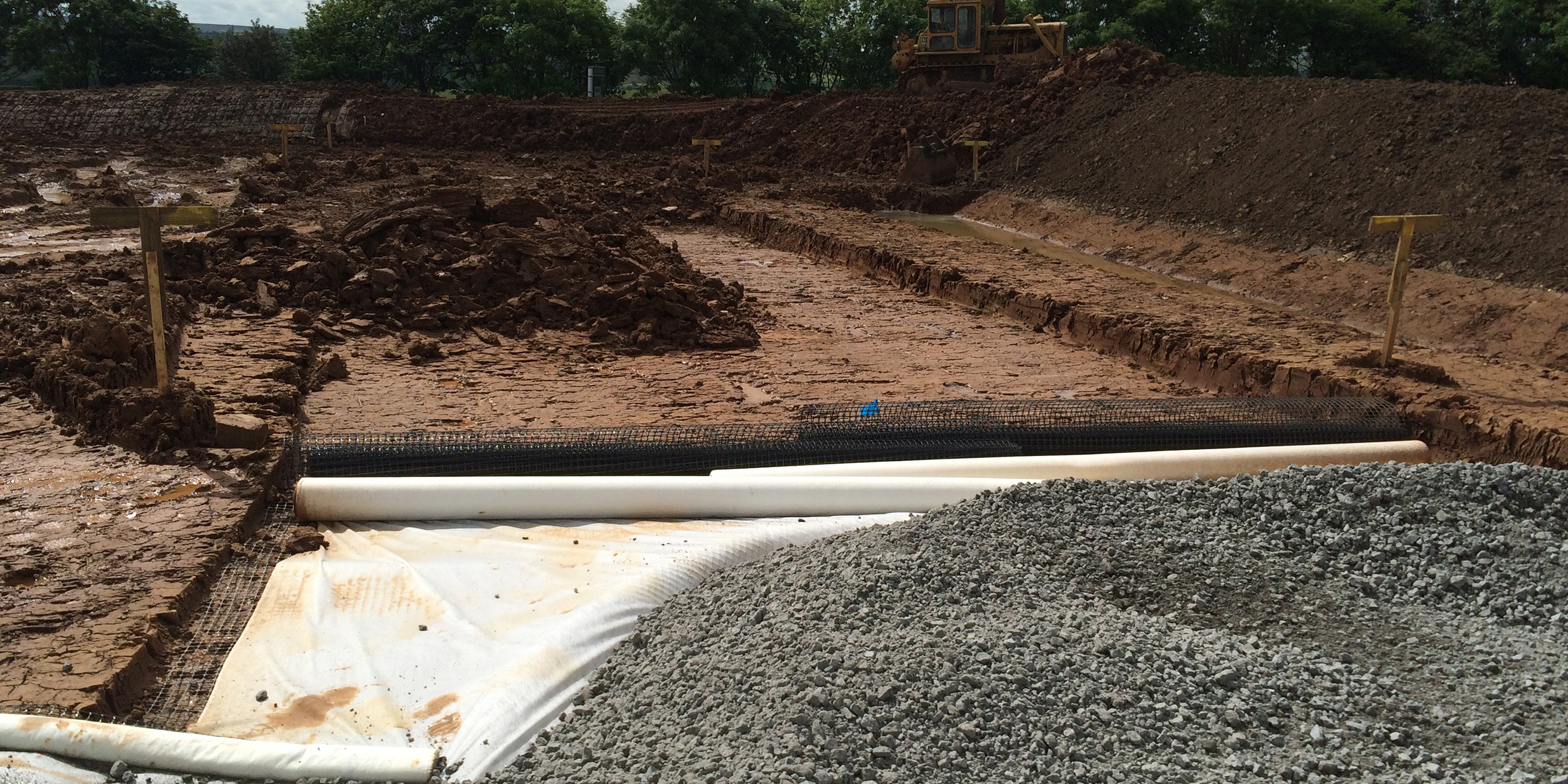

Geogrids being installed at Norwich North Recycling Centre
Continuing Professional Development

Value engineering with geogrids

This CPD will help you to understand the background of our range of products on offer, where they’re used, what makes them different, and what to look out for when specifying.

  • Learn about the different geogrid forms and what makes them different.
  • Understand the different manufacturing processes and their impacts
  • Understand how geogrids work to provide reinforcement properties
  • Learn how geogrids can add value to a project through value engineering
SX Grid available in roll widths up to 5.2m
The economical geogrid

Use less rolls on every project

SX Grid provides an economical and eco-friendly solution. Most geogrids are available in 4m roll widths, this results in rolls having to be overlapped and pined together, doubling labour, cost and shipping. SX Grid 3030, our most popular product in the range, is available in roll widths up to 5.2m wide.

This also happens to be the most economical method to ship geogrids to site. The added benefits of this includes reduced CO2, maximising the space available when shipping, meaning more can be transported in less space, reducing environmental impacts. The carbon reductions don’t just stop there, wider rolls means fewer trucks on the road delivering geogrid to site.

For larger applications SX Grid reduces the number of overlaps required compared to alternatives. A reduction in overlaps not only enhances the integrity of the solution by reducing the number of potential weaker points, but can significantly reduce installation time, saving on labour and plant costs.

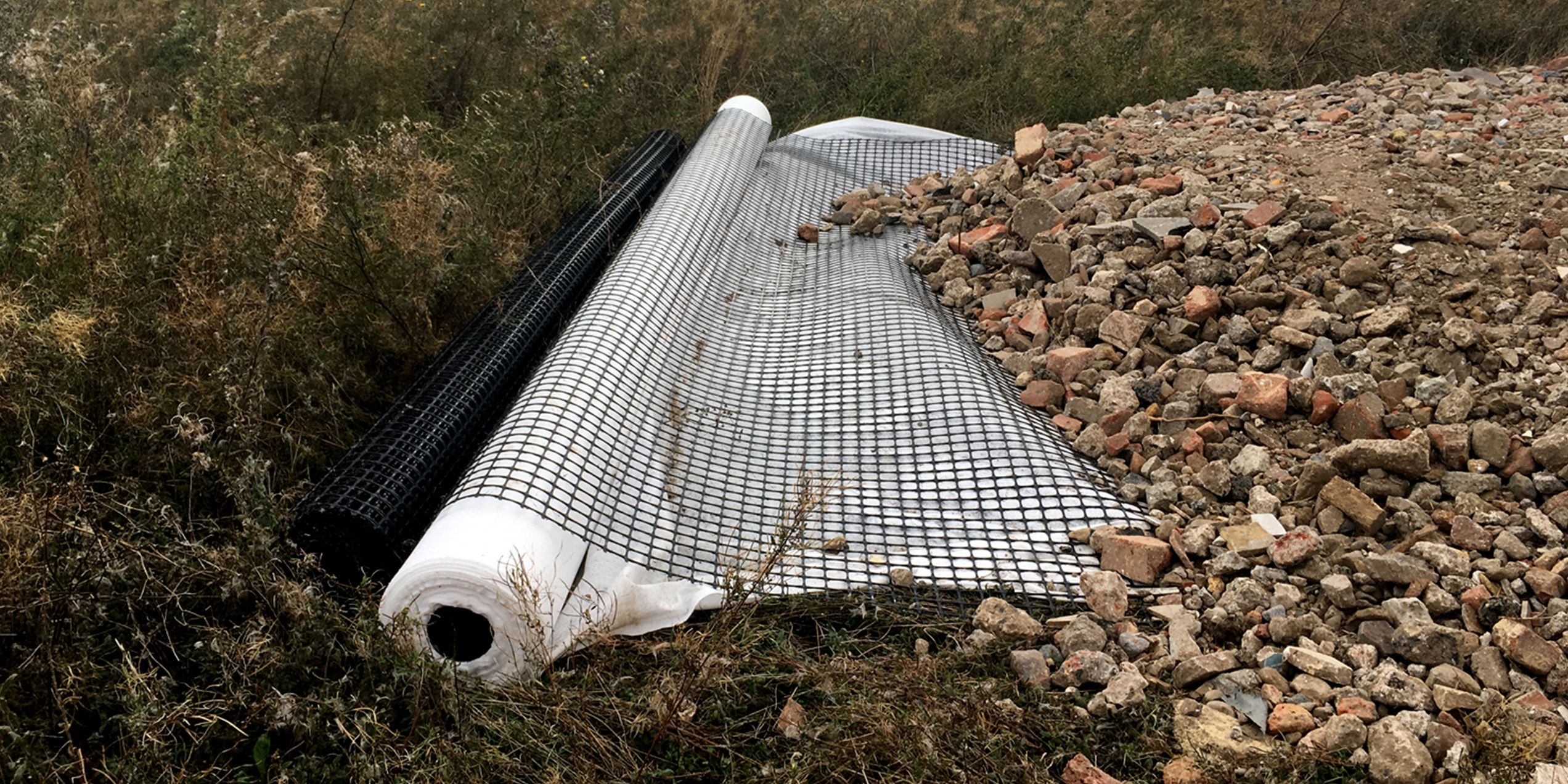

SX Composite Geogrid installation
Combined geogrid and geotextile

Have you considered SX Composite?

Achieve time savings when acquiring materials and overall quicker installations, thanks to SX Composite, a all-in-one solution that performs as both a biaxial geogrid and a geotextile. SX Composite consists of nonwoven geotextile thermally bonded to our popular SX range of geogrid. It provides the functions of reinforcement, separation and filtration into one single product, rather than having to use two separate solutions, which offers significant savings.


Related case studies

Related case study

Longhill burn Wind Farm

A new multi-million-pound wind farm is currently being constructed in West Lothian and, upon completion in 2022, it will be one of the largest onshore farms in the UK. Work at Longhill Burn wind farm in West Calder started in April 2021, with operations and management delivered by leading wind farm business, Energiekontor UK.

A E Yates
A E Yates
Read more
Related case study

Cumnock SWS Power Line Upgrade

The Scottish Government has set a major target to generate Scotland’s electricity from renewable energy. As the existing network does not have sufficient capacity to cope with the level of demand, a new transmission network was required. The South West Scotland Connections Project will play a key role in helping Scotland meet its renewable energy goals.

South West Scotland Connections
South West Scotland Connections
Read more
Contact us

Contact us

Whether you are looking for live project support, or are in the initial stages of specification, we are always on hand and happy to help.
